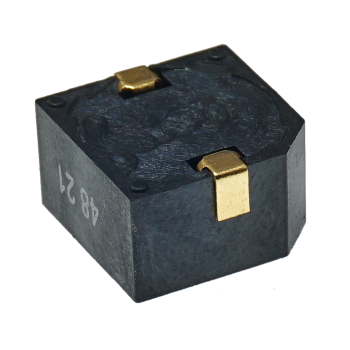

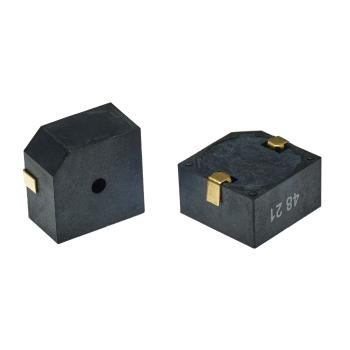

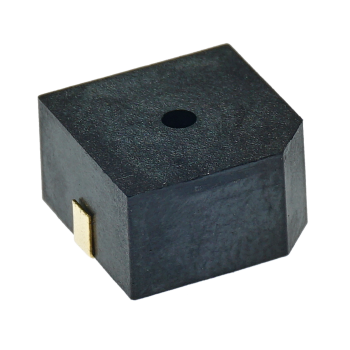

Magnetic Buzzer
SMB9650TA-27S3
9.6mm,3v,30mA,2700hz,smt magnetic buzzer,continuous sound,single tone,beep sound,smd,active buzzer,internally driven buzzer,internal drive,electromagnetic,magnetic indicator buzzer,magnetic sounder
/SMB9650TA/SMB9650TA-27S3/SMB9650TA-27S3_thumbnail_1_350x350.png)
/SMB9650TA/SMB9650TA-27S3/SMB9650TA-27S3_thumbnail_2_350x350.png)
/SMB9650TA/SMB9650TA-27S3/SMB9650TA-27S3_thumbnail_3_350x350.png)
Product Soundtrack
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 9.6 mm |
|---|---|
| Width | 9.6 mm |
| Height | 5.5 mm |
| Operating Voltage | 2 ~ 5 Vdc |
| Rated Voltage | 3 Vdc |
| Max. Rated Current | 30 mA |
| Min. Sound Pressure Level | 83 dBA |
| Measurement Distance | 10 cm |
| Resonant Frequency | 2700 Hz |
| Tone Nature | Single |
| Terminal | SMT |
| Operating Temperature | -20 ~ +70 ℃ |
| Housing Materials | PPS |
| Housing Colour | Black |
| Panel Mount | No |
| IP Rating | N/A |
/SMB9650TA/SMB9650TA-27S3/SMB9650TA-27S3_drawing.png)
*Dimensions in mm
