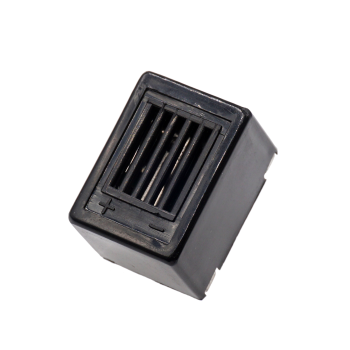

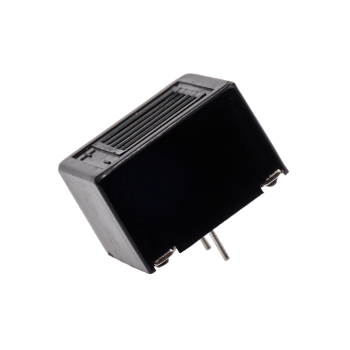

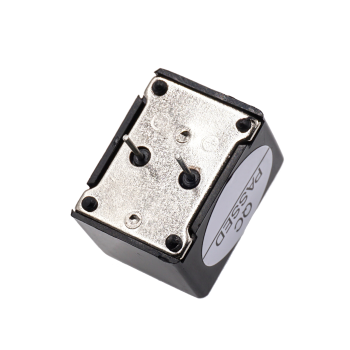

Mechanical Buzzer
MEB2317-B6P2
23mm, 6v, 25mA, 400hz, mechanical buzzer, continuous sound, single tone, active buzzer, internally driven buzzer, internal drive, low frequency sound, vibration buzzer, animal repellers
/MEB2317/MEB2317-B6P2/MEB2317-B6P2_thumbnail_1_350x350.png)
/MEB2317/MEB2317-B6P2/MEB2317-B6P2_thumbnail_2_350x350.png)
/MEB2317/MEB2317-B6P2/MEB2317-B6P2_thumbnail_3_350x350.png)
Product Soundtrack
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 23 mm |
|---|---|
| Width | 17 mm |
| Height | 15 mm |
| Operating Voltage | 4 ~ 8 Vdc |
| Rated Voltage | 6 Vdc |
| Max. Rated Current | 25 mA |
| Min. Sound Pressure Level | 75 dBA |
| Measurement Distance | 20 cm |
| Resonant Frequency | 400 Hz |
| Tone Nature | Single |
| Terminal | Pin |
| Operating Temperature | -20 ~ +70 ℃ |
| Housing Materials | ABS |
| Housing Colour | Black |
| Panel Mount | No |
| IP Rating | N/A |
/MEB2317/MEB2317-B6P2/MEB2317-B6P2_drawing.png)
