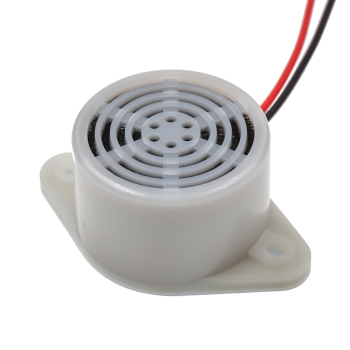

Mechanical Buzzer
MEB2618E-W12W
26.4mm, 12v, 33mA, 400hz, mechanical buzzer, continuous sound, single tone, panel mount, active buzzer, internally driven buzzer, internal drive, low frequency sound, vibration buzzer, animal repellers
/MEB2618E/MEB2618E-W12W/MEB2618E-W12W_thumbnail_1_350x350.png)
/MEB2618E/MEB2618E-W12W/MEB2618E-W12W_thumbnail_2_350x350.png)
Product Soundtrack
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 26.4 mm |
|---|---|
| Width | 26.4 mm |
| Height | 17.6 mm |
| Operating Voltage | 7 ~ 16 Vdc |
| Rated Voltage | 12 Vdc |
| Max. Rated Current | 33 mA |
| Min. Sound Pressure Level | 95 dBA |
| Measurement Distance | 10 cm |
| Resonant Frequency | 400 Hz |
| Tone Nature | Single |
| Terminal | Wire |
| Operating Temperature | -20 ~ +60 ℃ |
| Housing Materials | ABS |
| Housing Colour | White |
| Panel Mount | Yes |
| IP Rating | N/A |
/MEB2618E/MEB2618E-W12W/MEB2618E-W12W_drawing.png)
