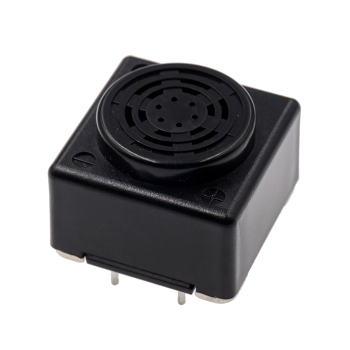

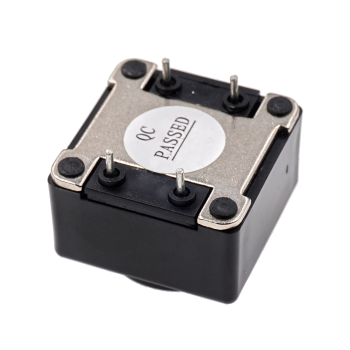

Mechanical Buzzer

MEB2620-B24P4

26mm,24v,55mA,400hz,mechanical buzzer,continuous sound,single tone,active buzzer,internally driven buzzer,internal drive,low frequency sound,vibration buzzer,animal repellers

Product Soundtrack

Mechanical Buzzer

MEB2620-B24P4

26mm,24v,55mA,400hz,mechanical buzzer,continuous sound,single tone,active buzzer,internally driven buzzer,internal drive,low frequency sound,vibration buzzer,animal repellers

Specification

Mechanical Drawing

Datasheet Customized Solutions

REQUEST A QUOTE

Interested in more information for this part?
Fill out the form below and we will be in touch!

Request a sample

Confirm

Specification

Mechanical Drawing

Length	26 mm
Width	26 mm
Height	19.3 mm
Operating Voltage	20 ~ 28 Vdc
Rated Voltage	24 Vdc
Max. Rated Current	55 mA
Min. Sound Pressure Level	95 dBA
Measurement Distance	10 cm
Resonant Frequency	400 Hz
Tone Nature	Single
Terminal	Pin
Operating Temperature	-30 ~ +70 ℃
Housing Materials	Noryl
Housing Colour	Black
Panel Mount	No
IP Rating	N/A
