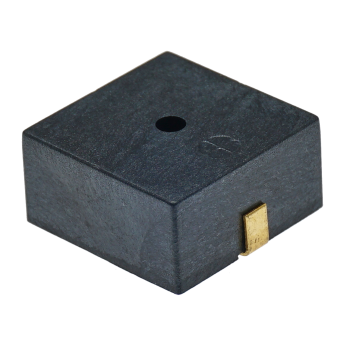

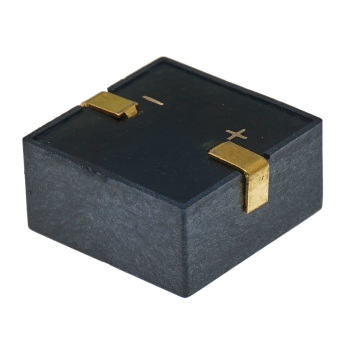

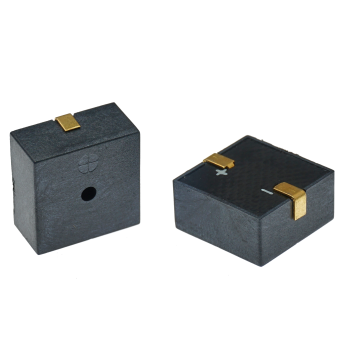

Piezo Buzzer
SPB1470-40S12
14mm,12v,10mA,4000hz,smt piezo buzzer,continuous sound,single tone,smd,active buzzer,internally driven buzzer,internal drive,piezoelectric,piezo indicator buzzer,piezo sounder
/SPB1470/SPB1470-40S12/SPB1470-40S12_thumbnail_1_350x350.png)
/SPB1470/SPB1470-40S12/SPB1470-40S12_thumbnail_2_350x350.png)
/SPB1470/SPB1470-40S12/SPB1470-40S12_thumbnail_3_350x350.png)
Product Soundtrack
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 14 mm |
|---|---|
| Width | 14 mm |
| Height | 7 mm |
| Operating Voltage | 4 ~ 16 Vdc |
| Rated Voltage | 12 Vdc |
| Max. Rated Current | 10 mA |
| Min. Sound Pressure Level | 90 dBA |
| Measurement Distance | 10 cm |
| Resonant Frequency | 4000 Hz |
| Tone Nature | Single |
| Terminal | SMT |
| Operating Temperature | -20 ~ +70 ℃ |
| Housing Materials | LCP |
| Housing Colour | Black |
| Panel Mount | No |
| IP Rating | N/A |
/SPB1470/SPB1470-40S12/SPB1470-40S12_drawing.png)
*Dimensions in mm
