Piezo Buzzer
XPB2616-28S12W
26mm,12v,35mA,2800hz,piezo buzzer,continuous sound,single tone,panel mount,IP67,waterproof buzzer,active buzzer,internally driven buzzer,internal drive,piezoelectric,piezo indicator buzzer,piezo sounder

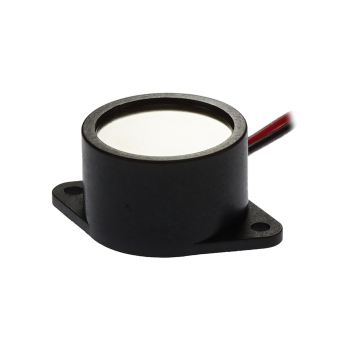

/XPB2616/XPB2616-28S12W/XPB2616-28S12W_thumbnail_1_350x350.png)

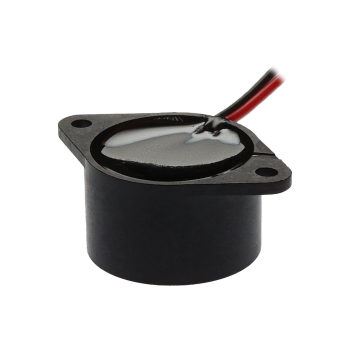

/XPB2616/XPB2616-28S12W/XPB2616-28S12W_thumbnail_2_350x350.png)

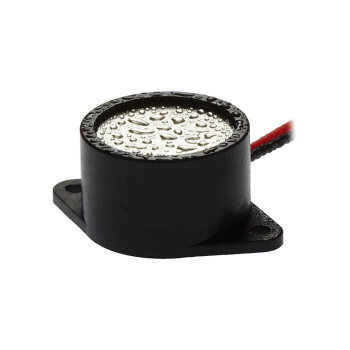

/XPB2616/XPB2616-28S12W/XPB2616-28S12W_thumbnail_3_350x350.png)
Product Soundtrack
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 25.6 mm |
|---|---|
| Width | 25.6 mm |
| Height | 16 mm |
| Operating Voltage | 6 ~ 16 Vdc |
| Rated Voltage | 12 Vdc |
| Max. Rated Current | 35 mA |
| Min. Sound Pressure Level | 85 dBA |
| Measurement Distance | 30 cm |
| Resonant Frequency | 2800 Hz |
| Tone Nature | Single |
| Terminal | Wire |
| Operating Temperature | -30 ~ +85 ℃ |
| Housing Materials | ABS |
| Housing Colour | Black |
| Panel Mount | Yes |
| IP Rating | IP67 |
/XPB2616/XPB2616-28S12W/XPB2616-28S12W_drawing.png)
*Dimensions in mm
