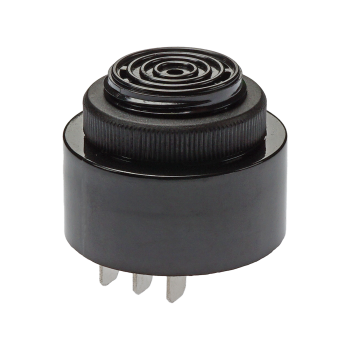

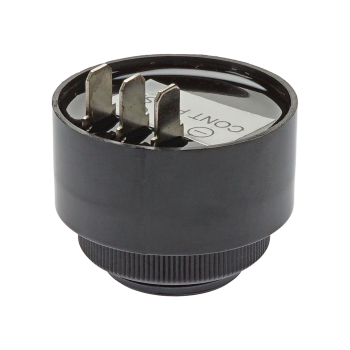

Piezo Buzzer
XPB4310-29SSP12T
43mm, 12v, 25mA, 2900hz, piezo buzzer, pulse tone, continuous sound, single tone, multi tone, panel mount, active buzzer, internally driven buzzer, internal drive, piezoelectric, piezo indicator buzzer, piezo sounder
/XPB4310/XPB4310-29SSP12T/XPB4310-29SSP12T_thumbnail_1_350x350.png)
/XPB4310/XPB4310-29SSP12T/XPB4310-29SSP12T_thumbnail_2_350x350.png)
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 43 mm |
|---|---|
| Width | 43 mm |
| Height | 33 mm |
| Operating Voltage | 6 ~ 28 Vdc |
| Rated Voltage | 12 Vdc |
| Max. Rated Current | 25 mA |
| Min. Sound Pressure Level | 90 dBA |
| Measurement Distance | 30 cm |
| Resonant Frequency | 2900 Hz |
| Tone Nature | Slow Pulse / Single |
| Terminal | Plate |
| Operating Temperature | -20 ~ +70 ℃ |
| Housing Materials | ABS |
| Housing Colour | Black |
| Panel Mount | Yes |
| IP Rating | N/A |
/XPB4310/XPB4310-29SSP12T/XPB4310-29SSP12T_drawing.png)
