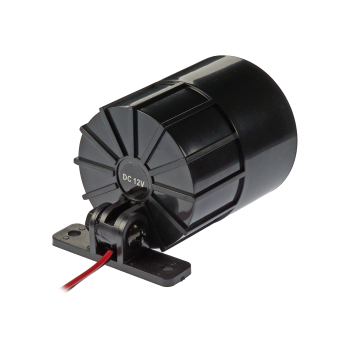

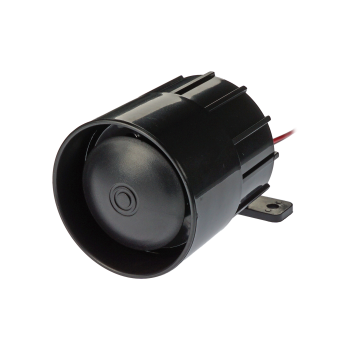

Piezo Buzzer
XPB5459-26SP12W
54mm,12v,160mA,2600hz,piezo buzzer,pulse tone,active buzzer,internally driven buzzer,internal drive,piezoelectric,piezo indicator buzzer,piezo sounder
/XPB5459/XPB5459-26SP12W/XPB5459-26SP12W_thumbnail_1_350x350.png)
/XPB5459/XPB5459-26SP12W/XPB5459-26SP12W_thumbnail_2_350x350.png)
Product Soundtrack
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 54 mm |
|---|---|
| Width | 54 mm |
| Height | 59 mm |
| Operating Voltage | 6 ~ 15 Vdc |
| Rated Voltage | 12 Vdc |
| Max. Rated Current | 160 mA |
| Min. Sound Pressure Level | 105 dBA |
| Measurement Distance | 100 cm |
| Resonant Frequency | 2600 Hz |
| Tone Nature | Slow Pulse |
| Terminal | Wire |
| Operating Temperature | -20 ~ +70 ℃ |
| Housing Materials | ABS |
| Housing Colour | Black |
| Panel Mount | No |
| IP Rating | N/A |
/XPB5459/XPB5459-26SP12W/XPB5459-26SP12W_drawing.png)
*Dimensions in mm
