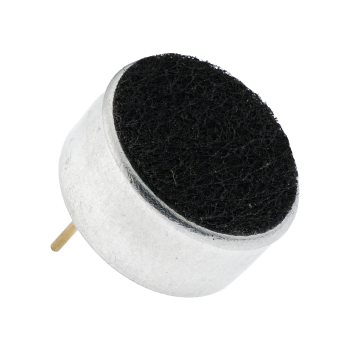

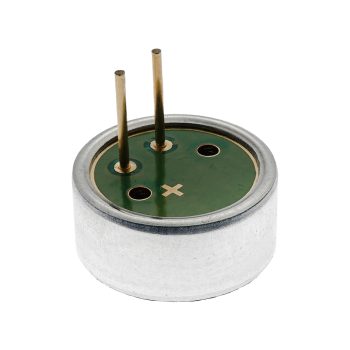

Electret Condenser Microphone
CMN9745-2022-383P-1033
9.7mm, noise cancelling, foil, 2v, 2200ohm, -38dB, dip mic, dip microphone, pin type microphone, electret condenser microphone, ecm mic, microphone component, mic capsule, microphone capsule
/CMN9745/CMN9745-2022-383P-1033/CMN9745-2022-383P-1033_thumbnail_1_350x350.png)
/CMN9745/CMN9745-2022-383P-1033/CMN9745-2022-383P-1033_thumbnail_2_350x350.png)
Electret Condenser Microphone
CMN9745-2022-383P-1033
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 9.7 mm |
|---|---|
| Width | 9.7 mm |
| Height | 4.5 mm |
| Directivity | Noise Cancelling |
| Electret Type | Foil |
| Standard Voltage | 2 Vdc |
| Output Impedance | 2200 ohm |
| Sensitivity | -38 ± 3 dB |
| Signal to Noise Ratio | 60 dBA |
| Terminal | Pin |
| Operating Temperature | -20 ~ +70 ℃ |
/CMN9745/CMN9745-2022-383P-1033/CMN9745-2022-383P-1033_drawing.png)
