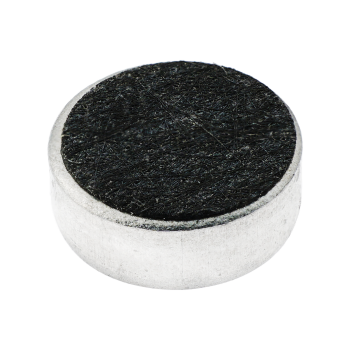

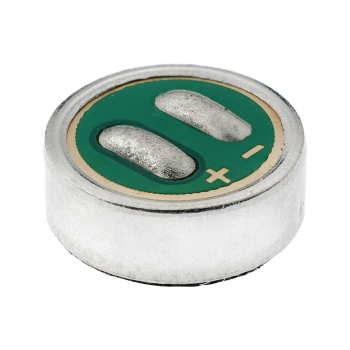

Electret Condenser Microphone
CMO6022-2022-423S-1033
6mm, omnidirectional, foil, 2v, 2200ohm, -42dB, solder pad microphone, electret condenser microphone, ecm mic, microphone component, mic capsule, microphone capsule
/CMO6022/CMO6022-2022-423S-1033/CMO6022-2022-423S-1033_thumbnail_1_350x350.png)
/CMO6022/CMO6022-2022-423S-1033/CMO6022-2022-423S-1033_thumbnail_2_350x350.png)
Electret Condenser Microphone
CMO6022-2022-423S-1033
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 6 mm |
|---|---|
| Width | 6 mm |
| Height | 2.2 mm |
| Directivity | Omnidirectional |
| Electret Type | Foil |
| Standard Voltage | 2 Vdc |
| Output Impedance | 2200 ohm |
| Sensitivity | -42 ± 3 dB |
| Signal to Noise Ratio | 60 dBA |
| Terminal | Solder Pad |
| Operating Temperature | -20 ~ +70 ℃ |
/CMO6022/CMO6022-2022-423S-1033/CMO6022-2022-423S-1033_drawing.png)
