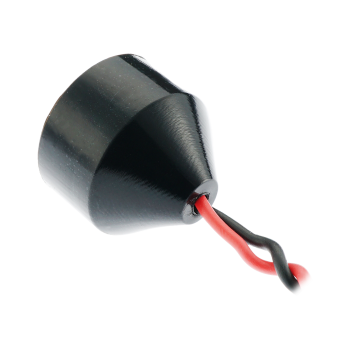

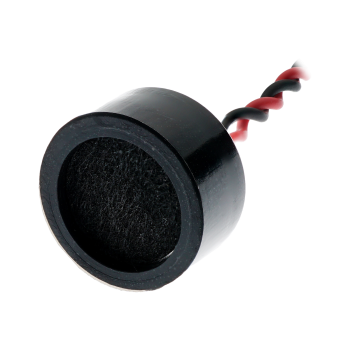

Electret Condenser Microphone

CMO9745-X215

9.7mm, omnidirectional, foil, 1.5v, 2200ohm, -40dB, connector type microphone, rubber holder, rubber boots, electret condenser microphone, ecm mic, microphone component, mic capsule, microphone capsule
Electret Condenser Microphone-CMO9745-X215
Electret Condenser Microphone-CMO9745-X215

Electret Condenser Microphone

Specification
Mechanical Drawing
Datasheet Customized Solutions
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Confirm
Length 9.7 mm
Width 9.7 mm
Height 4.5 mm
Directivity Omnidirectional
Electret Type Foil
Standard Voltage 1.5 Vdc
Output Impedance 2200 ohm
Sensitivity -40 ± 2 dB
Signal to Noise Ratio 60 dBA
Terminal Connector
Operating Temperature -20 ~ +70 ℃
