Products Microphone Electret Condenser Microphone CMO9750-2022-434S

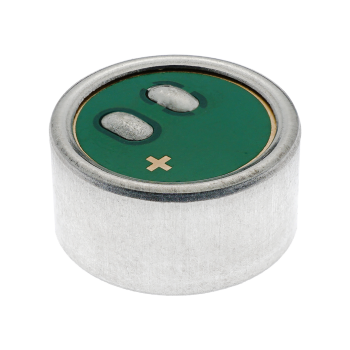

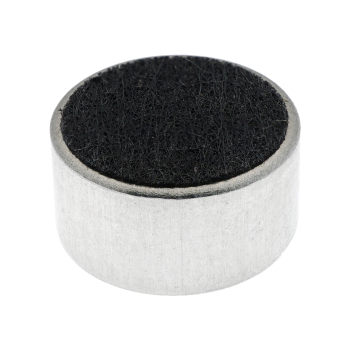

Electret Condenser Microphone

CMO9750-2022-434S

9.7mm, omnidirectional, foil, 2v, 2200ohm, -43dB, solder pad microphone, electret condenser microphone, ecm mic, microphone component, mic capsule, microphone capsule
Electret Condenser Microphone-CMO9750-2022-434S
Electret Condenser Microphone-CMO9750-2022-434S

Electret Condenser Microphone

Specification
Mechanical Drawing
Datasheet Customized Solutions
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Confirm
Length 9.7 mm
Width 9.7 mm
Height 5 mm
Directivity Omnidirectional
Electret Type Foil
Standard Voltage 2 Vdc
Output Impedance 2200 ohm
Sensitivity -43 ± 4 dB
Signal to Noise Ratio 60 dBA
Terminal Solder Pad
Operating Temperature -20 ~ +70 ℃
