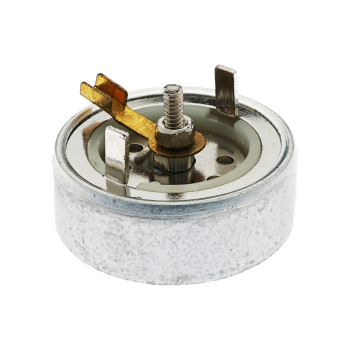

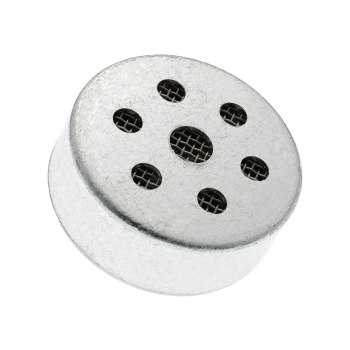

Electret Condenser Microphone
CMUB1665-15068-392E-1
16mm,unidirectional,back plate,1.5v,680ohm,-39dB,screw type microphone,electret condenser microphone,ecm mic,microphone component,mic capsule,microphone capsule
/CMUB1665/CMUB1665-15068-392E-1/CMUB1665-15068-392E-1_thumbnail_1_350x350.png)
/CMUB1665/CMUB1665-15068-392E-1/CMUB1665-15068-392E-1_thumbnail_2_350x350.png)
Electret Condenser Microphone
CMUB1665-15068-392E-1
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 16 mm |
|---|---|
| Width | 16 mm |
| Height | 6.5 mm |
| Directivity | Unidirectional |
| Electret Type | Back Plate |
| Standard Voltage | 1.5 Vdc |
| Output Impedance | 680 ohm |
| Sensitivity | -39 ± 2 dB |
| Signal to Noise Ratio | 58 dBA |
| Terminal | Screw |
| Operating Temperature | -20 ~ +70 ℃ |
/CMUB1665/CMUB1665-15068-392E-1/CMUB1665-15068-392E-1_drawing.png)
*Dimensions in mm
