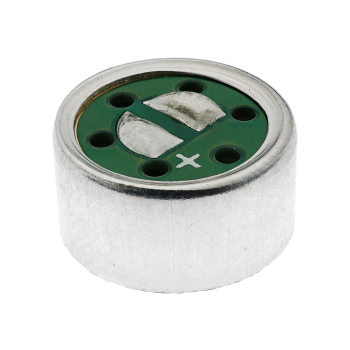

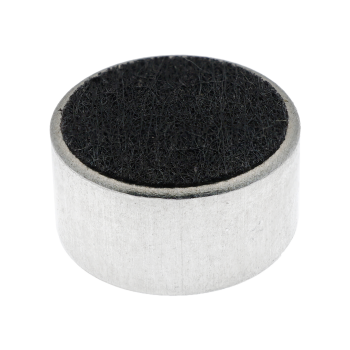

Electret Condenser Microphone
CMUB9750-15068-422S-1033
9.7mm, unidirectional, back plate, 1.5v, 680ohm, -42dB, solder pad microphone, electret condenser microphone, ecm mic, microphone component, mic capsule, microphone capsule
/CMUB9750/CMUB9750-15068-422S-1033/CMUB9750-15068-422S-1033_thumbnail_1_350x350.png)
/CMUB9750/CMUB9750-15068-422S-1033/CMUB9750-15068-422S-1033_thumbnail_2_350x350.png)
Electret Condenser Microphone
CMUB9750-15068-422S-1033
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 9.7 mm |
|---|---|
| Width | 9.7 mm |
| Height | 5 mm |
| Directivity | Unidirectional |
| Electret Type | Back Plate |
| Standard Voltage | 1.5 Vdc |
| Output Impedance | 680 ohm |
| Sensitivity | -42 ± 2 dB |
| Signal to Noise Ratio | 58 dBA |
| Terminal | Solder Pad |
| Operating Temperature | -20 ~ +70 ℃ |
/CMUB9750/CMUB9750-15068-422S-1033/CMUB9750-15068-422S-1033_drawing.png)
