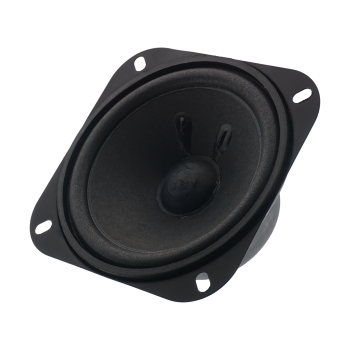

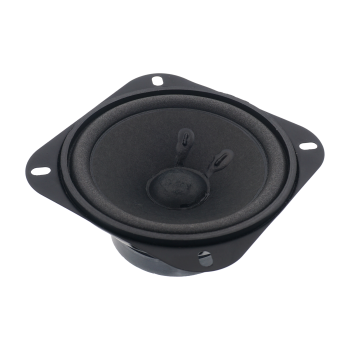

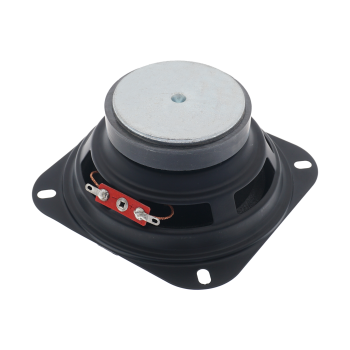

Loud Speaker
LEU102S-47H20W8N
102mm,8ohm speaker,20w,150hz,paper cone,edge speaker,ferrite,square shape speaker,metal frame,loud speaker,multimedia speaker,external magnet speaker,communication application,access control system
/LEU102S/LEU102S-47H20W8N/LEU102S-47H20W8N_thumbnail_1_350x350.png)
/LEU102S/LEU102S-47H20W8N/LEU102S-47H20W8N_thumbnail_2_350x350.png)
/LEU102S/LEU102S-47H20W8N/LEU102S-47H20W8N_thumbnail_3_350x350.png)
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 102 mm |
|---|---|
| Width | 102 mm |
| Height | 47.5 mm |
| Sound Pressure Level | 97 dB |
| Measurement Condition | 1W/1M |
| Impedance | 8 ohm |
| Rated Input Power | 20 W |
| Max Input Power | 22 W |
| Resonant Frequency | 150 Hz |
| Terminal | Solder Pad |
| Operating Temperature | -25 ~ +50 ℃ |
| Cone Materials | Paper |
| Speaker Edge | Yes |
| Magnet Type | Ferrite |
| Frame Shape | Square |
| Frame Materials | Metal |
| Enclosed | No |
| IP Rating | N/A |
/LEU102S/LEU102S-47H20W8N/LEU102S-47H20W8N_drawing.png)
*Dimensions in mm
