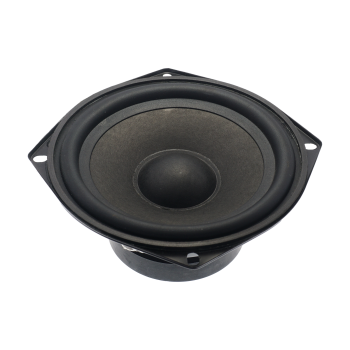

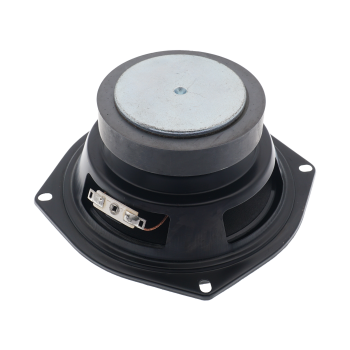

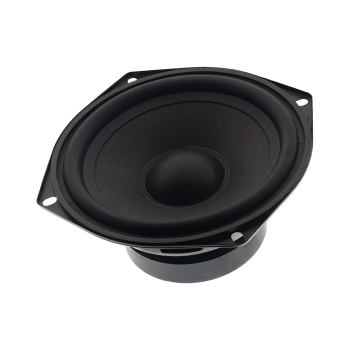

Loud Speaker
LEU133S-65H25W8N
133mm,8ohm speaker,25w,70hz,paper cone,edge speaker,ferrite,square shape speaker,metal frame,loud speaker,multimedia speaker,external magnet speaker,communication application,access control system
/LEU133S/LEU133S-65H25W8N/LEU133S-65H25W8N_thumbnail_1_350x350.png)
/LEU133S/LEU133S-65H25W8N/LEU133S-65H25W8N_thumbnail_2_350x350.png)
/LEU133S/LEU133S-65H25W8N/LEU133S-65H25W8N_thumbnail_3_350x350.png)
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 133 mm |
|---|---|
| Width | 133 mm |
| Height | 65 mm |
| Sound Pressure Level | 90 dB |
| Measurement Condition | 0.1W/0.1M |
| Impedance | 8 ohm |
| Rated Input Power | 25 W |
| Max Input Power | 35 W |
| Resonant Frequency | 70 Hz |
| Terminal | Solder Pad |
| Operating Temperature | -30 ~ +75 ℃ |
| Cone Materials | Paper |
| Speaker Edge | Yes |
| Magnet Type | Ferrite |
| Frame Shape | Square |
| Frame Materials | Metal |
| Enclosed | No |
| IP Rating | N/A |
/LEU133S/LEU133S-65H25W8N/LEU133S-65H25W8N_drawing.png)
*Dimensions in mm
