Loud Speaker

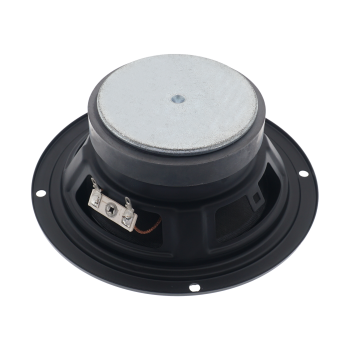

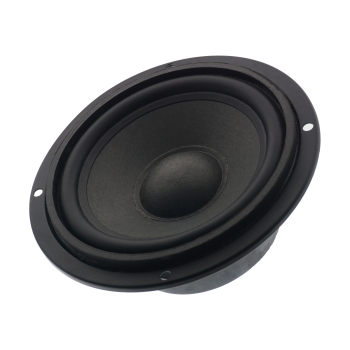

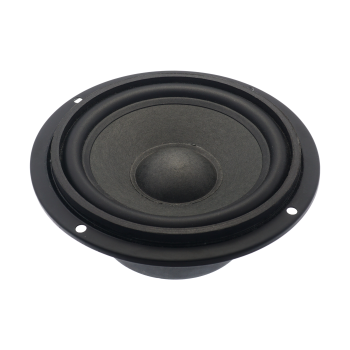

LEU136R-55H30W8N
136mm,8ohm speaker,30w,85hz,paper cone,edge speaker,ferrite,round shape speaker,metal frame,loud speaker,multimedia speaker,external magnet speaker,communication application,access control system
/LEU136R/LEU136R-55H30W8N/LEU136R-55H30W8N_thumbnail_1_350x350.png)
/LEU136R/LEU136R-55H30W8N/LEU136R-55H30W8N_thumbnail_2_350x350.png)
/LEU136R/LEU136R-55H30W8N/LEU136R-55H30W8N_thumbnail_3_350x350.png)
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 136 mm |
|---|---|
| Width | 136 mm |
| Height | 55 mm |
| Sound Pressure Level | 91 dB |
| Measurement Condition | 0.1W/0.1M |
| Impedance | 8 ohm |
| Rated Input Power | 30 W |
| Max Input Power | 50 W |
| Resonant Frequency | 85 Hz |
| Terminal | Solder Pad |
| Operating Temperature | -30 ~ +75 ℃ |
| Cone Materials | Paper |
| Speaker Edge | Yes |
| Magnet Type | Ferrite |
| Frame Shape | Round |
| Frame Materials | Metal |
| Enclosed | No |
| IP Rating | N/A |
/LEU136R/LEU136R-55H30W8N/LEU136R-55H30W8N_drawing.png)
*Dimensions in mm
