Micro Speaker
OSR1511E-3.0TS0.7W8A-R
/OSR1511E/OSR1511E-3.0TS0.7W8A-R/OSR1511E-3.0TS0.7W8A-R_thumbnail_1_350x350.png)

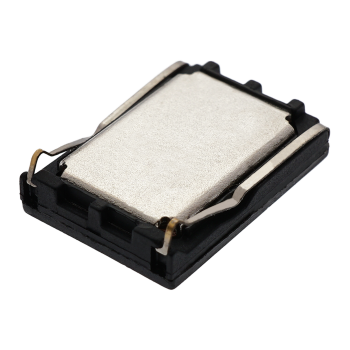

/OSR1511E/OSR1511E-3.0TS0.7W8A-R/OSR1511E-3.0TS0.7W8A-R_thumbnail_2_350x350.png)
/OSR1511E/OSR1511E-3.0TS0.7W8A-R/OSR1511E-3.0TS0.7W8A-R_thumbnail_3_350x350.png)
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 15 mm |
|---|---|
| Width | 11 mm |
| Height | 3 mm |
| Sound Pressure Level | 89 dB |
| Measurement Condition | 0.7W/10cm/free air |
| Impedance | 8 ohm |
| Rated Input Power | 0.7 W |
| Max Input Power | 1 W |
| Resonant Frequency | 700 Hz |
| Terminal | Spring |
| Operating Temperature | -20 ~ 70 ℃ |
| Cone Materials | PEEK |
| Speaker Edge | No |
| Magnet Type | NdFeB |
| Frame Shape | Rectangular |
| Frame Materials | PBT |
| Enclosed | No |
| IP Rating | N/A |
/OSR1511E/OSR1511E-3.0TS0.7W8A-R/OSR1511E-3.0TS0.7W8A-R_drawing.png)
*Dimensions in mm
