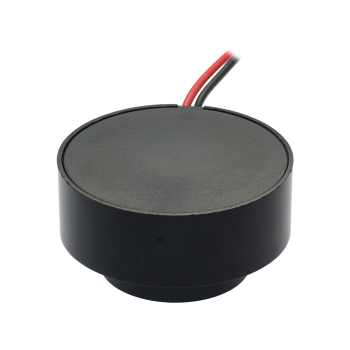

External Drive Piezo Transducer
XPT3016-32A24-W
30.6mm,12v,5mA,3250hz,24000pf,piezo transducer,continuous sound,single tone,beep sound,siren,alarm,high sound output,passive transducer,externally driven transducer,external drive,piezoelectric,piezo indicator transducer,piezo sounder,transducer
/XPT3016/XPT3016-32A24-W/XPT3016-32A24-W_thumbnail_1_350x350.png)
/XPT3016/XPT3016-32A24-W/XPT3016-32A24-W_thumbnail_2_350x350.png)
Product Soundtrack
External Drive Piezo Transducer
XPT3016-32A24-W
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 30 mm |
|---|---|
| Width | 30 mm |
| Height | 16 mm |
| Operating Voltage | 1 ~ 40 Vp-p |
| Rated Voltage | 12 Vp-p |
| Rated Current | 5 mA |
| Min. Sound Pressure Level | 110 dBA |
| Measurement Distance | 10 cm |
| Resonant Frequency | 3250 Hz |
| Capacitance | 24000 pF |
| Terminal | Wire |
| Operating Temperature | -30 ~ +70 ℃ |
| Housing Materials | ABS |
| Housing Colour | Black |
| Panel Mount | No |
| IP Rating | N/A |
/XPT3016/XPT3016-32A24-W/XPT3016-32A24-W_drawing.png)
*Dimensions in mm
