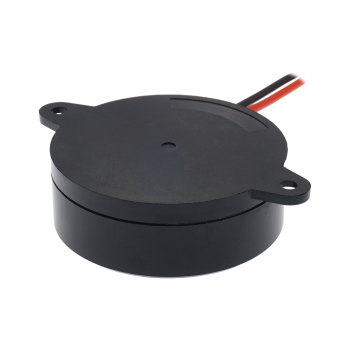

External Drive Piezo Transducer
XPT5018E-X366
50mm,12v,50mA,3000hz,68000pf,piezo transducer,continuous sound,single tone,beep sound,panel mount,siren,alarm,high sound output,passive transducer,externally driven transducer,external drive,piezoelectric,piezo indicator transducer,piezo sounder,transducer
/XPT5018E/XPT5018E-X366/XPT5018E-X366_thumbnail_1_350x350.png)
/XPT5018E/XPT5018E-X366/XPT5018E-X366_thumbnail_2_350x350.png)
Product Soundtrack
External Drive Piezo Transducer
XPT5018E-X366
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 50 mm |
|---|---|
| Width | 50 mm |
| Height | 18 mm |
| Operating Voltage | 5 ~ 15 Vp-p |
| Rated Voltage | 12 Vp-p |
| Rated Current | 50 mA |
| Min. Sound Pressure Level | 100 dBA |
| Measurement Distance | 100 cm |
| Resonant Frequency | 3000 Hz |
| Capacitance | 68000 pF |
| Terminal | Connector |
| Operating Temperature | -20 ~ +80 ℃ |
| Housing Materials | ABS |
| Housing Colour | Black |
| Panel Mount | Yes |
| IP Rating | N/A |
/XPT5018E/XPT5018E-X366/XPT5018E-X366_drawing.png)
*Dimensions in mm
