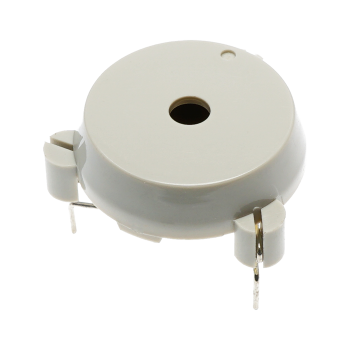

Self Drive Piezo Transducer
XPTF2309-35P
22.5mm, 12v, 15mA, 3500hz, self drive piezo transducer, continuous sound, single tone, beep sound, passive transducer, self drive transducer, piezoelectric, low power consumption, piezo sounder, smoke detector
/XPTF2309/XPTF2309-35P/XPTF2309-35P_thumbnail_1_350x350.png)
/XPTF2309/XPTF2309-35P/XPTF2309-35P_thumbnail_2_350x350.png)
Product Soundtrack
Self Drive Piezo Transducer
XPTF2309-35P
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 22.5 mm |
|---|---|
| Width | 22.5 mm |
| Height | 9.2 mm |
| Operating Voltage | 3 ~ 20 Vdc |
| Rated Voltage | 12 Vdc |
| Rated Current | 15 mA |
| Min. Sound Pressure Level | 85 dBA |
| Measurement Distance | 10 cm |
| Resonant Frequency | 3500 Hz |
| Termainal | Pin |
| Operating Temperature | -20 ~ +70 ℃ |
| Housing Materilas | ABS |
| Housing Colour | Grey |
| Panel Mount | No |
| IP Rating | N/A |
/XPTF2309/XPTF2309-35P/XPTF2309-35P_drawing.png)
