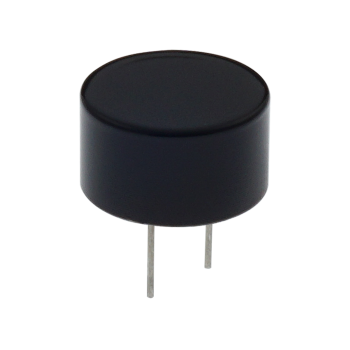

Close Structure Ultrasonic Sensor
UC16-TR40ABP
16mm, 40khz, 1800pf, X:100 / Y:70 degree, 0.4-6.5m, dual, transceiver integration, ultrasonic sensor, object detection, distance detection, distance measurement, close structure, stem education, distance measuring, robot sensor, IoT sensor components, outdoor sensor, waterproof, IP81, ip rating, high frequency sound
/UC16/UC16-TR40ABP/UC16-TR40ABP_thumbnail_1_350x350.png)
/UC16/UC16-TR40ABP/UC16-TR40ABP_thumbnail_2_350x350.png)
Close Structure Ultrasonic Sensor
UC16-TR40ABP
REQUEST A QUOTE
Interested in more information for this part?
Fill out the form below and we will be in touch!
Fill out the form below and we will be in touch!
Confirm
Specification
Mechanical Drawing
| Length | 16 mm |
|---|---|
| Width | 16 mm |
| Height | 9 mm |
| Function | Dual |
| Min. Sound Pressure Level | 100 dB |
| Min. Sensitivity | -75 dB |
| Center Frequency | 40 KHz |
| Input Voltage | 140 Vp-p |
| Capacitance | 1800 pF |
| Directivity | X:100 / Y:70 ° |
| Detectable Range | 0.2 m |
| Terminal | Pin |
| Operating Temperature | -40 ~ +80 ℃ |
| Housing Materials | Aluminum |
| Housing Colour | Black |
| IP Rating | IP67 |
/UC16/UC16-TR40ABP/UC16-TR40ABP_drawing.png)
